West side after completion of all the cabling. The unit is still retracted 20 cm from the beam pipe |
| ||
|

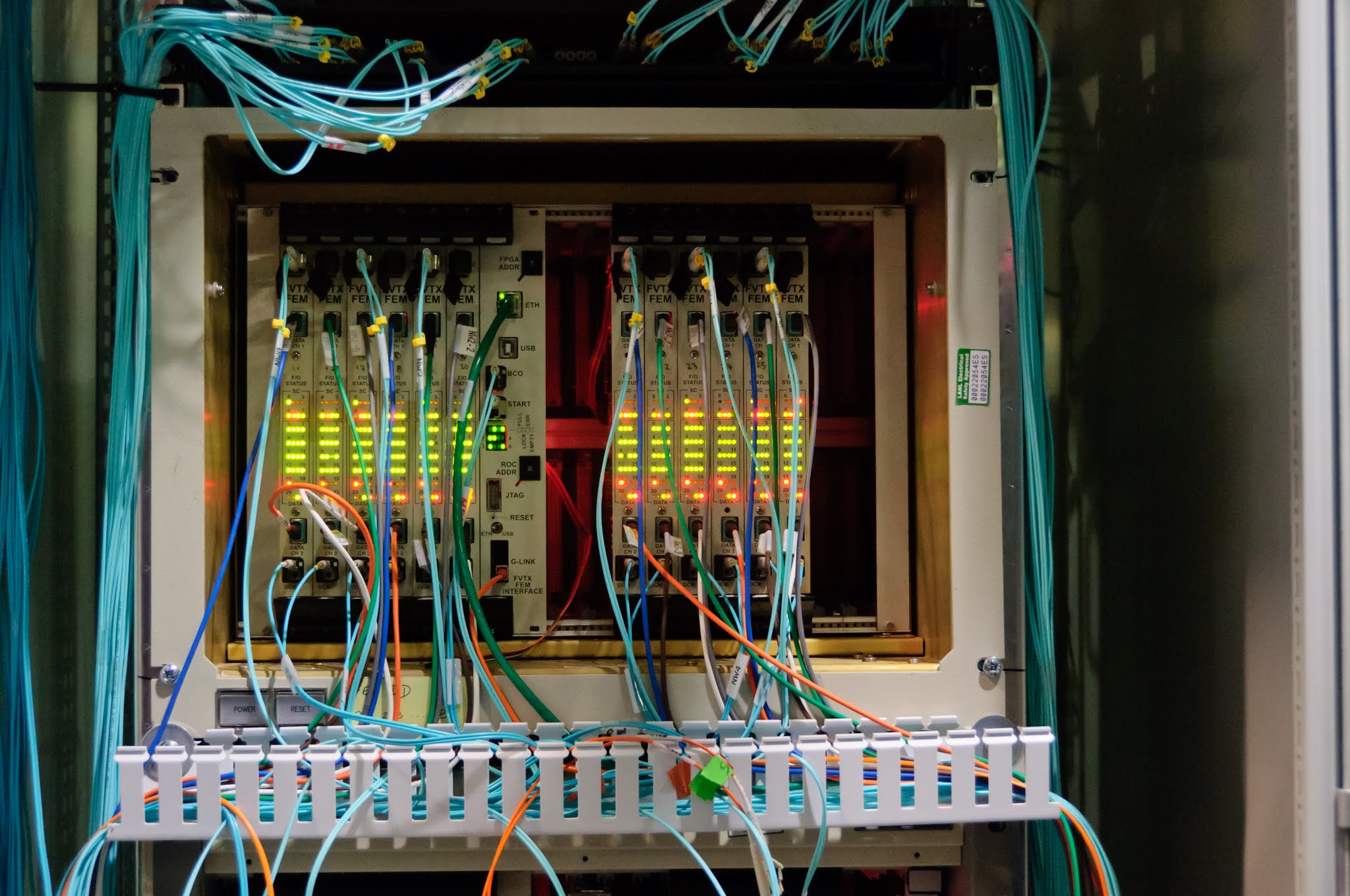

Rack in the rack room upstairs, showing the 4 FEM crates. From top to bottom: NW SW NE SE |
| ||
|

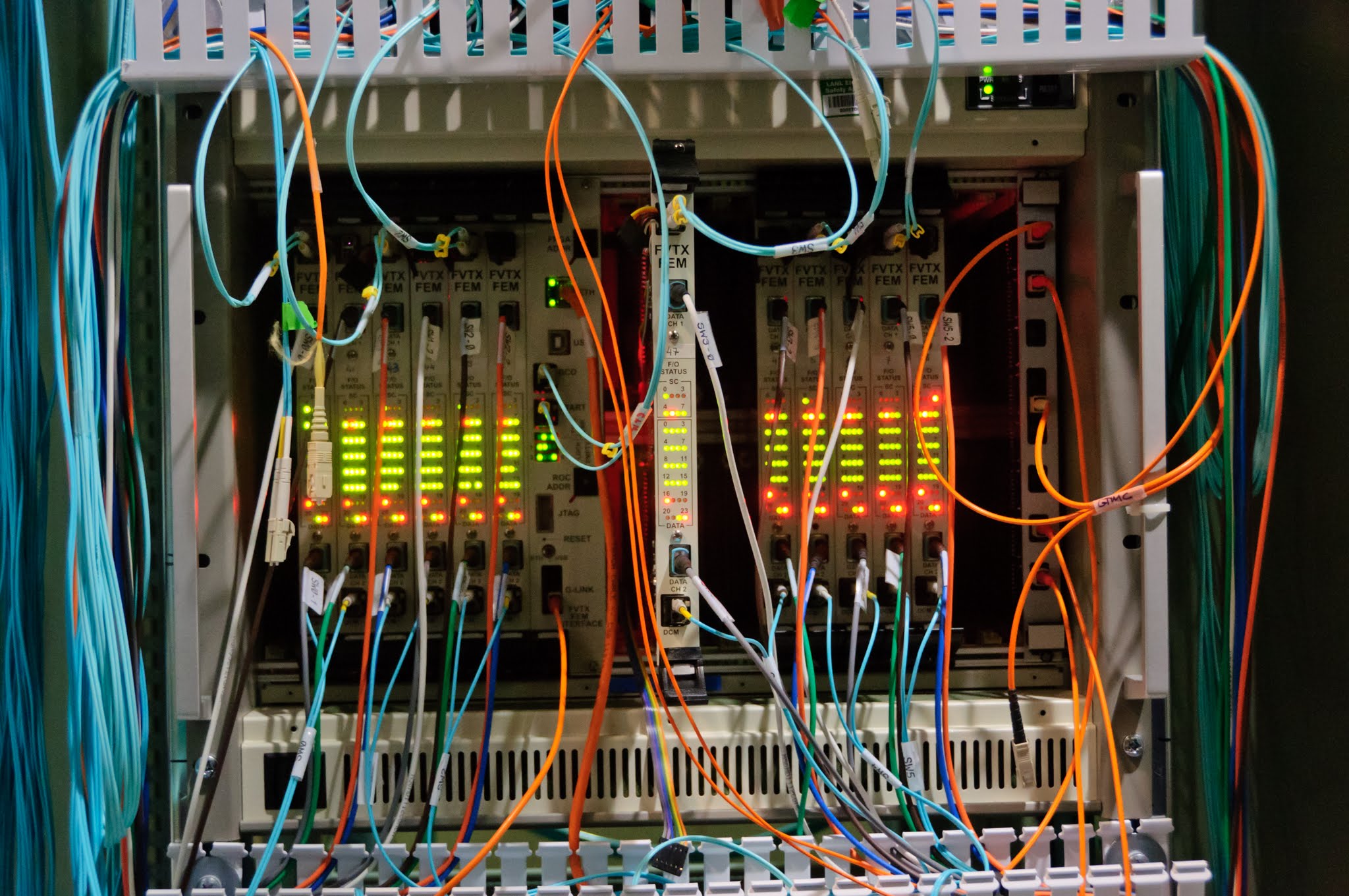

One crate, for the NE quadrant. Notice the left module shows a proper Slow Control fiber latch (top left LED), but no data. This is because one of 2 data fibers is not yet connected (see the test result data base). |
| ||
|

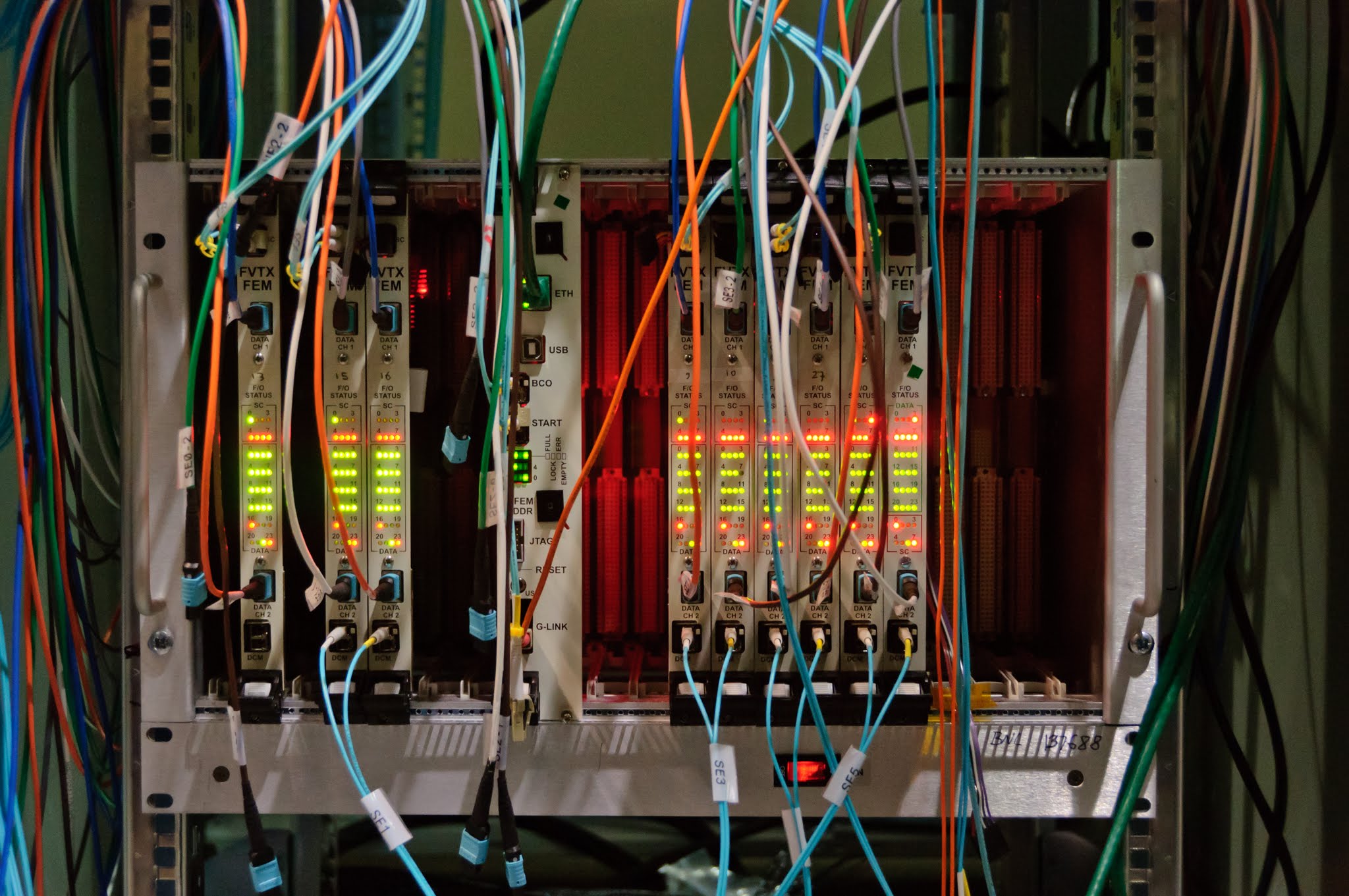

In a neighboring rack is the crate with the 4 DCM's |
|
