Station rotations, and central plane crossing

In the Monte Carlo, the stations are rotated by multiples of 7.5°/8. From the model (this SolidWorks file) , we read the following angles:

MC rotation
× 0.9375° 		Support plane edge supp. to HDIsum-5.046/0.937
Station 10 5.830° 2.029° 7.859° 2.813° 3
Station 23 2.366° 2.68° 5.046° 0.0 0
Station 31 4.241° 2.68° 6.921° 1.875° 2
Station 42 3.303° 2.68° 5.983° 0.937° 1

The absolute angles are dictated by having to stay clear of mounting posts and pins. Station 1 is different from 2,3,4, but in the end the sensors are rotated correctly.

Station 1:

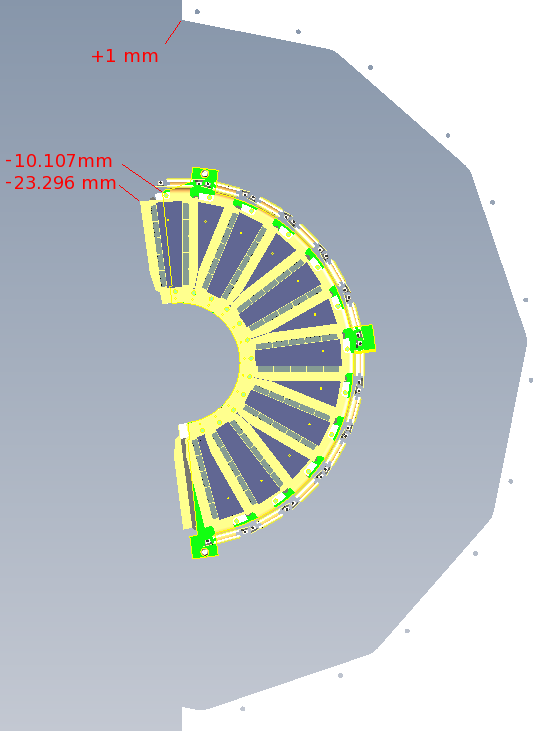

In white is the big wheel support plate, which has an exact vertical edge 1 mm to the right of the midplane.

The station-1 support plane is shown in green with yellow outline. Because of the rotation of the plane, its leftmost point crosses the midplane by 10.107 mm. The HDIs protrude beyond the support plane, with the leftmost point at -23.296 mm.

Click to enlarge →

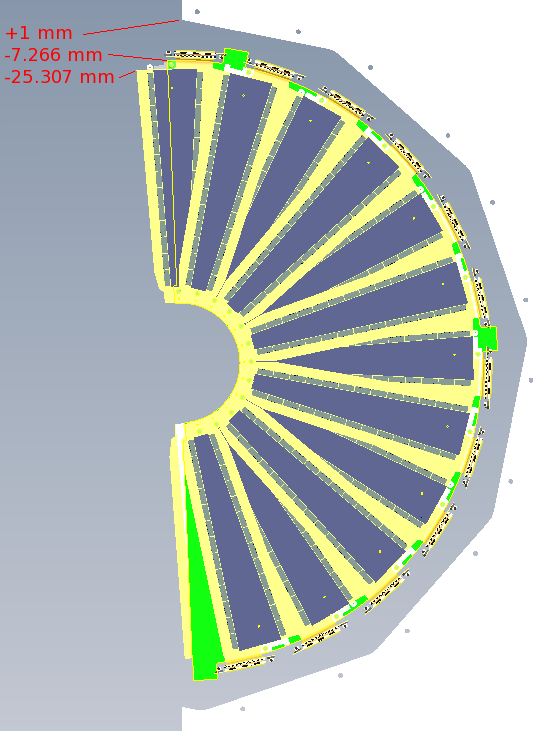

Station 2:

Same as above - big wheel support in white (+1 mm), station 2 support plane in green with yellow outline (-7.266 mm), HDI in pale yellow (-25.307 mm).

Click to enlarge →

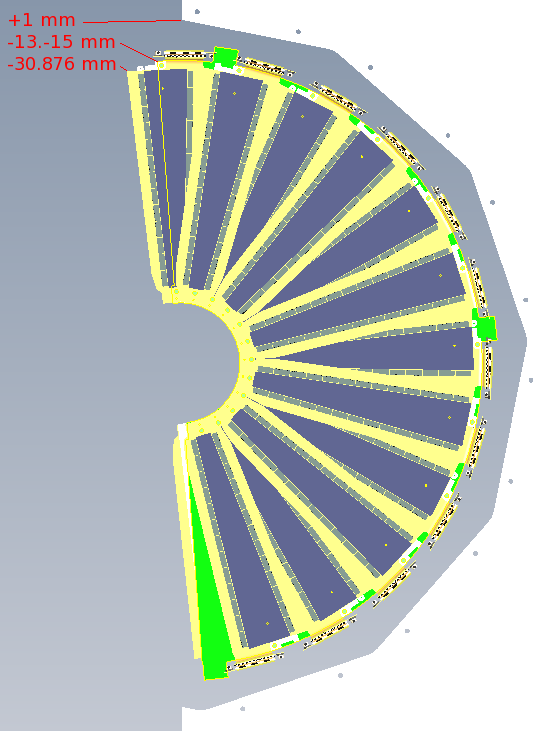

Station 3:

Same as above - big wheel support in white (+1 mm), station 3 support plane in green with yellow outline (-13.015 mm), HDI in pale yellow (-30.876 mm).

Click to enlarge →

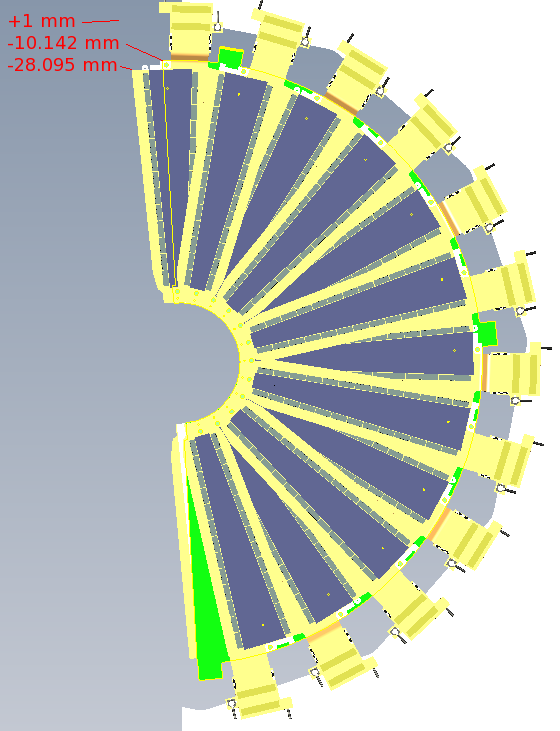

Station 4:

Same as above - big wheel support in white (+1 mm), station 4 support plane in green with yellow outline (-10.142 mm), HDI in pale yellow (-28.095 mm).

Click to enlarge →

Summary:
support plane HDI
Station 1 -10.107 -23.296
Station 2 -7.266 -25.307
Station 3 -13.015 -30.876
Station 4 -10.142 -28.095
